SKU: MI-20412

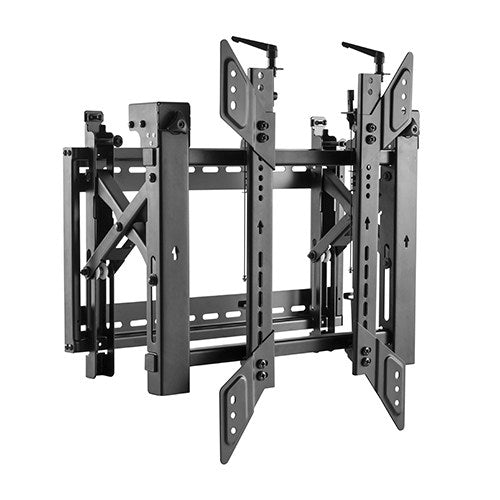

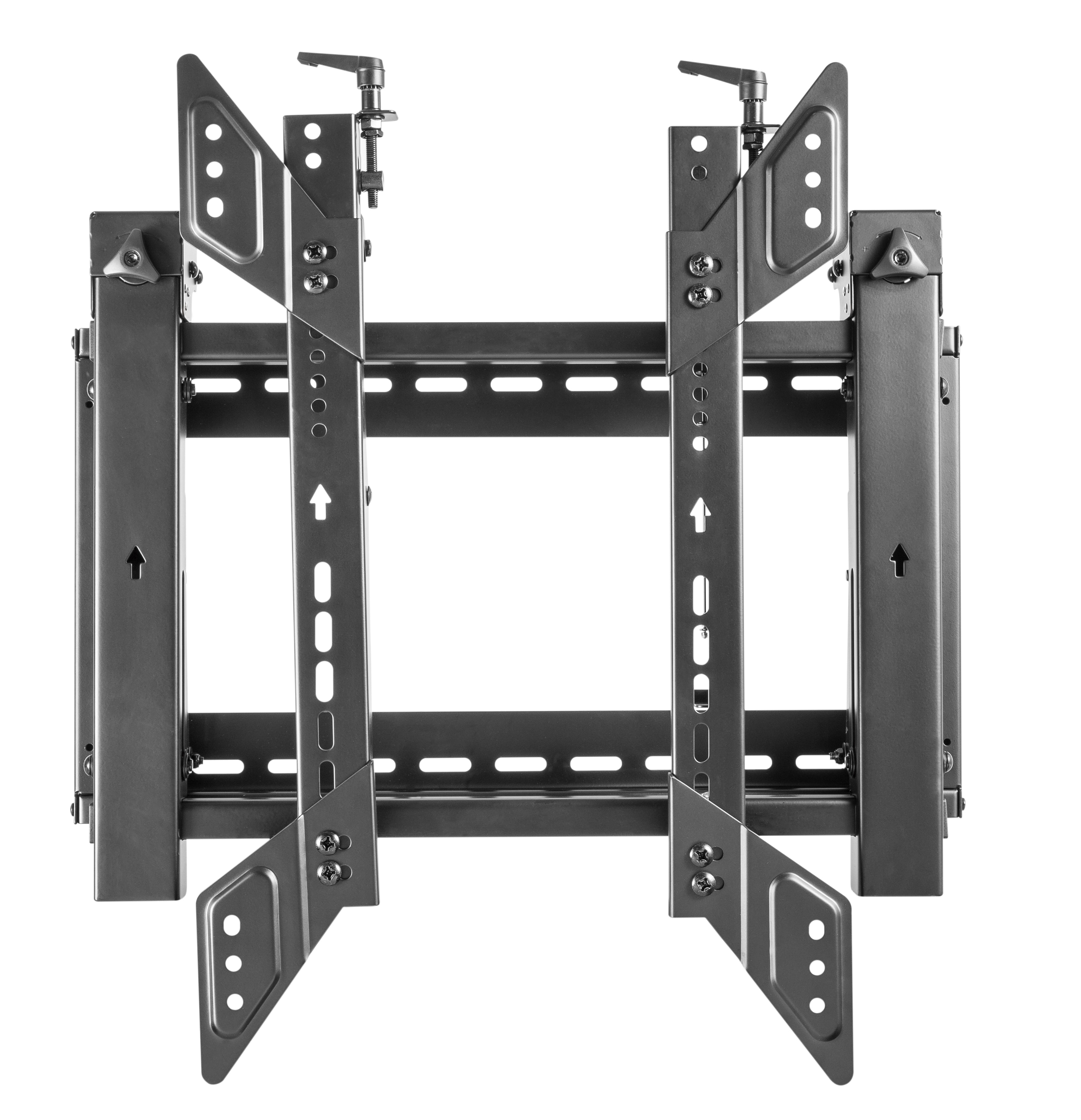

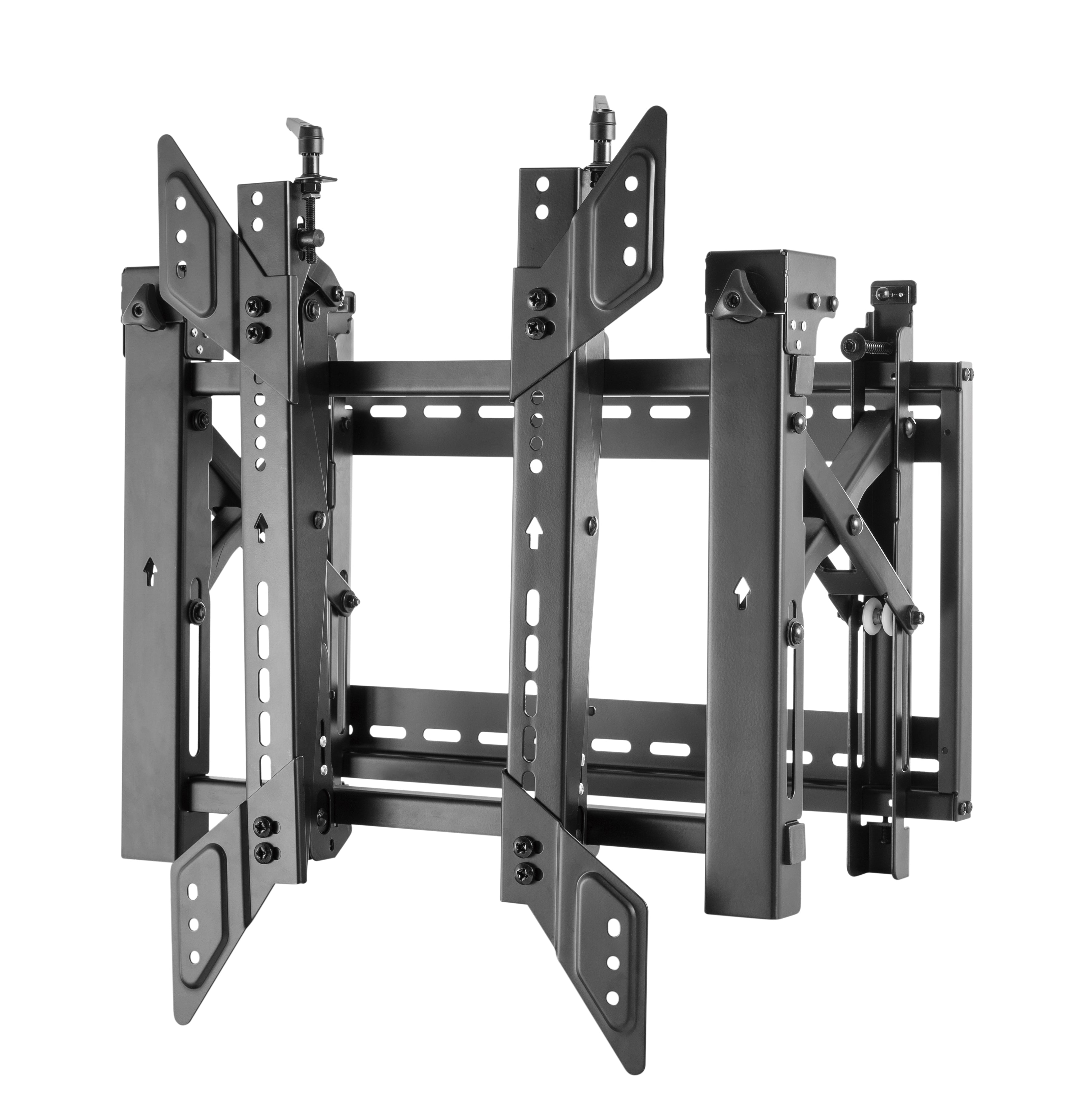

Portrait Pop-Out Video Wall Mount (up to 70" screen size)

Portrait Pop-Out Video Wall Mount (up to 70" screen size)
Portrait Pop-Out Video Wall Mount (up to 70" screen size)
Portrait Pop-Out Video Wall Mount (up to 70" screen size)
SKU: MI-20412

Portrait Pop-Out Video Wall Mount (up to 70" screen size)

  • Compatible with 45" to 70" displays (or larger, depending on VESA mounting pattern)
  • 154lbs weight capacity (per screen)
  • Modular, easy to configure, quick to install, and simple to maintain

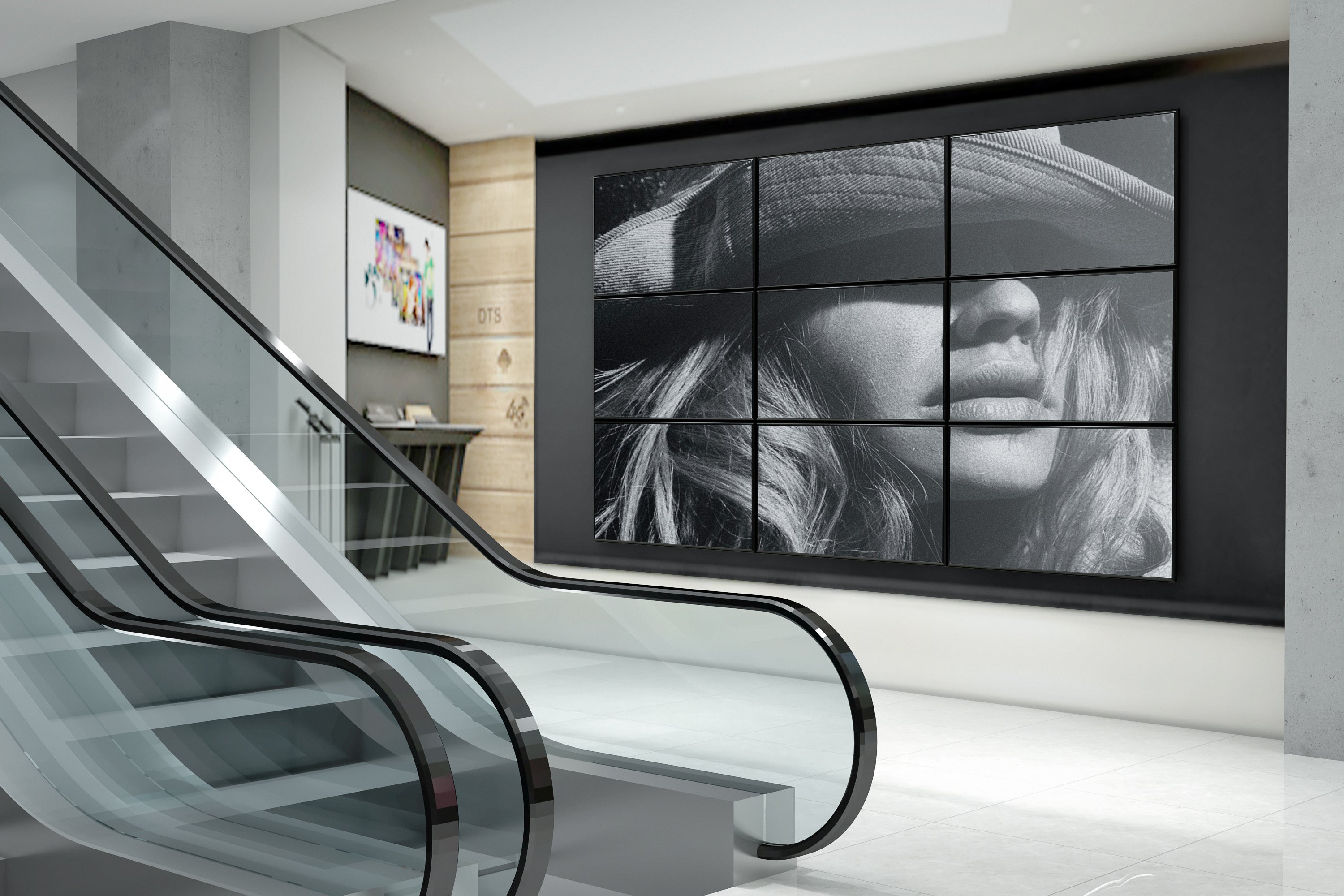

  • Ideal for Menu Boards, Digital Signage, Public Display, and Point-of-Information use

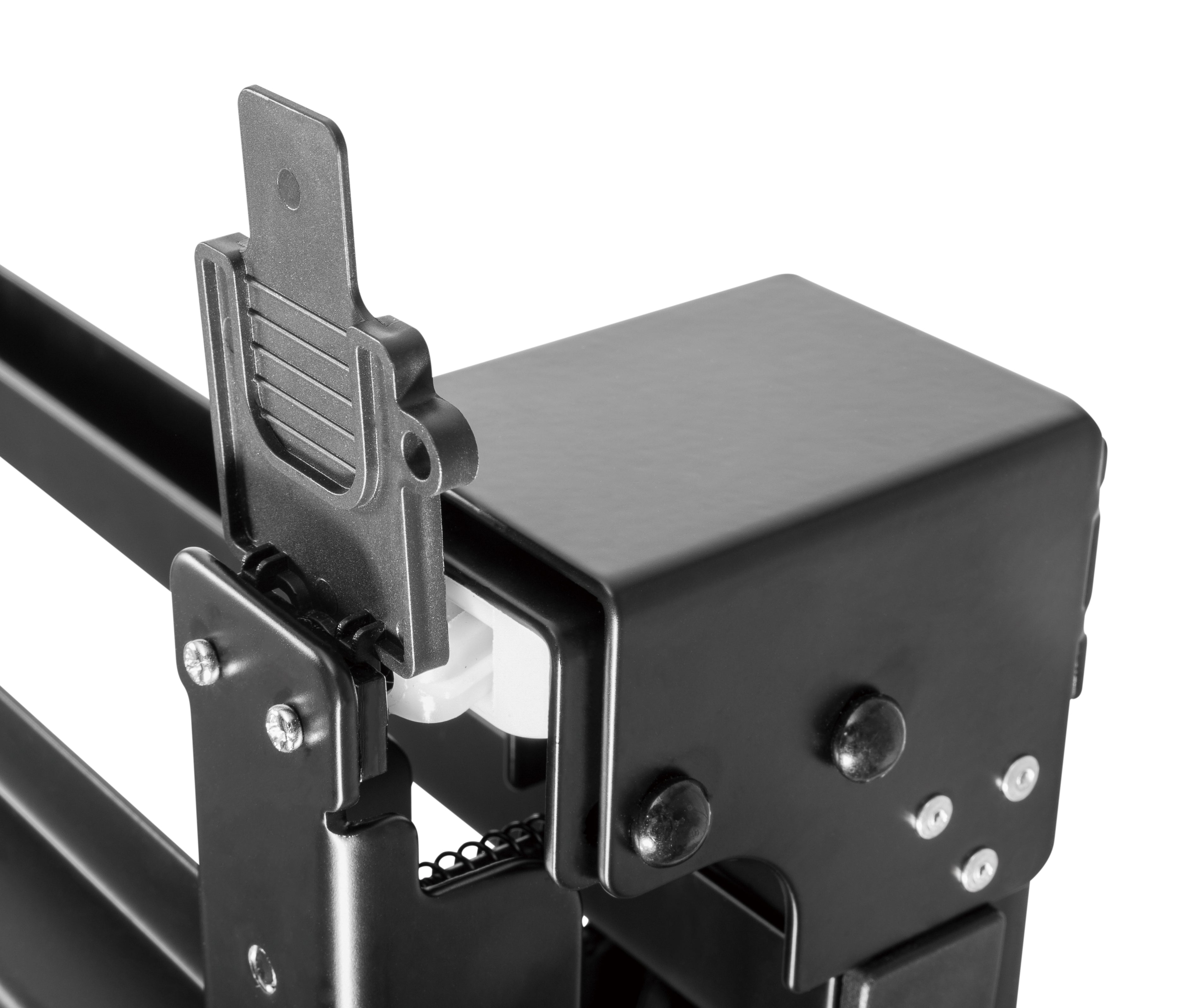

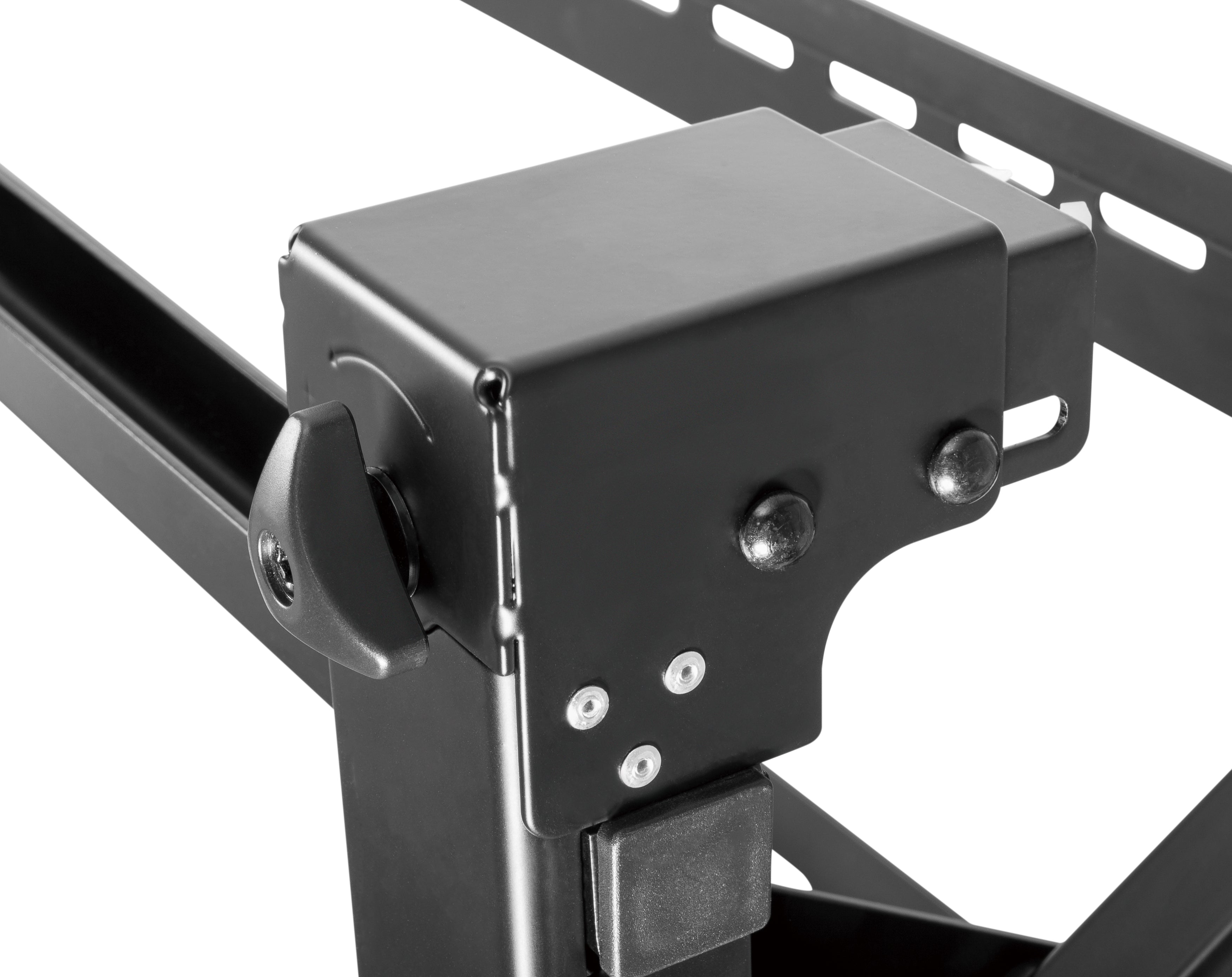

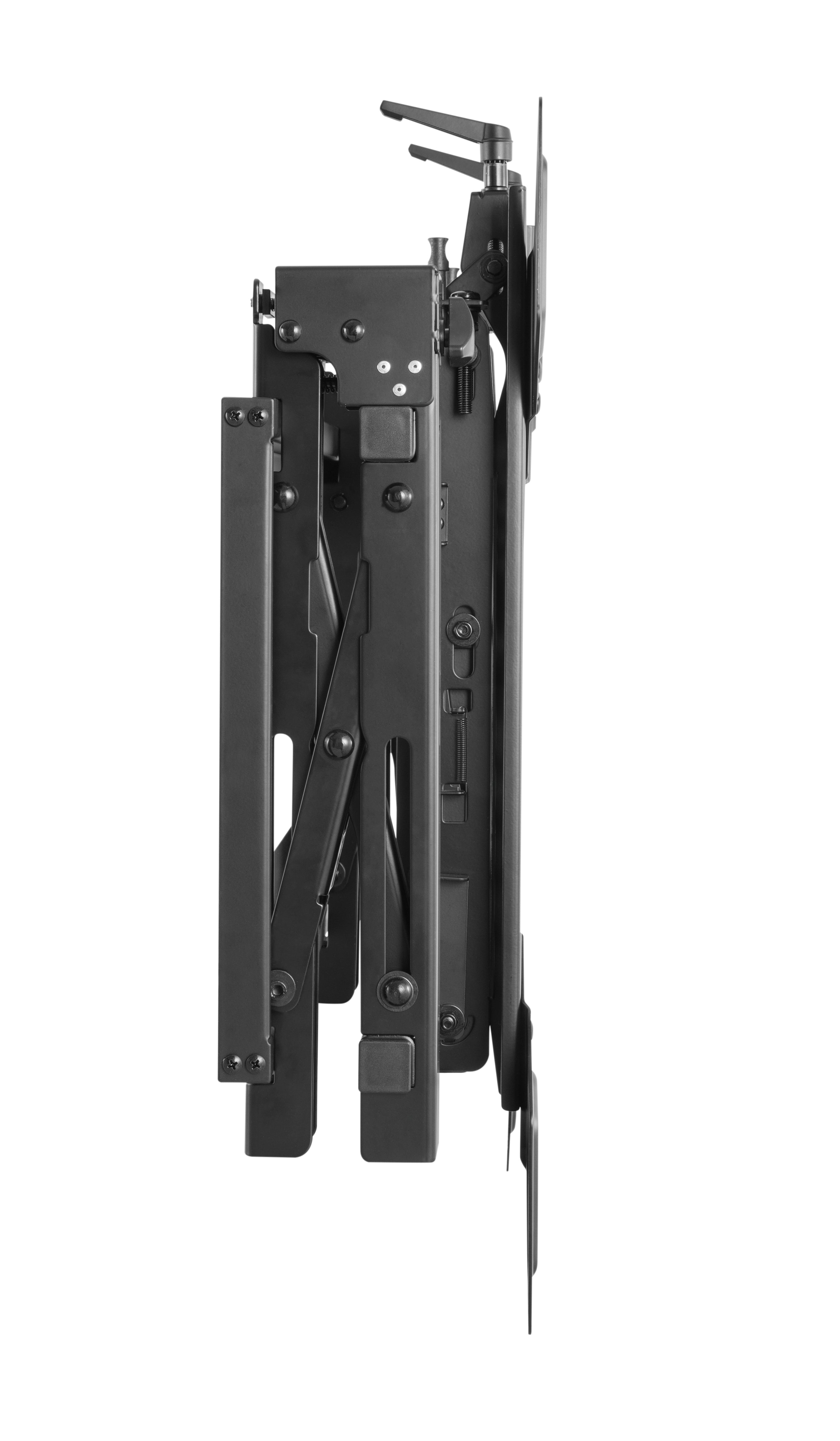

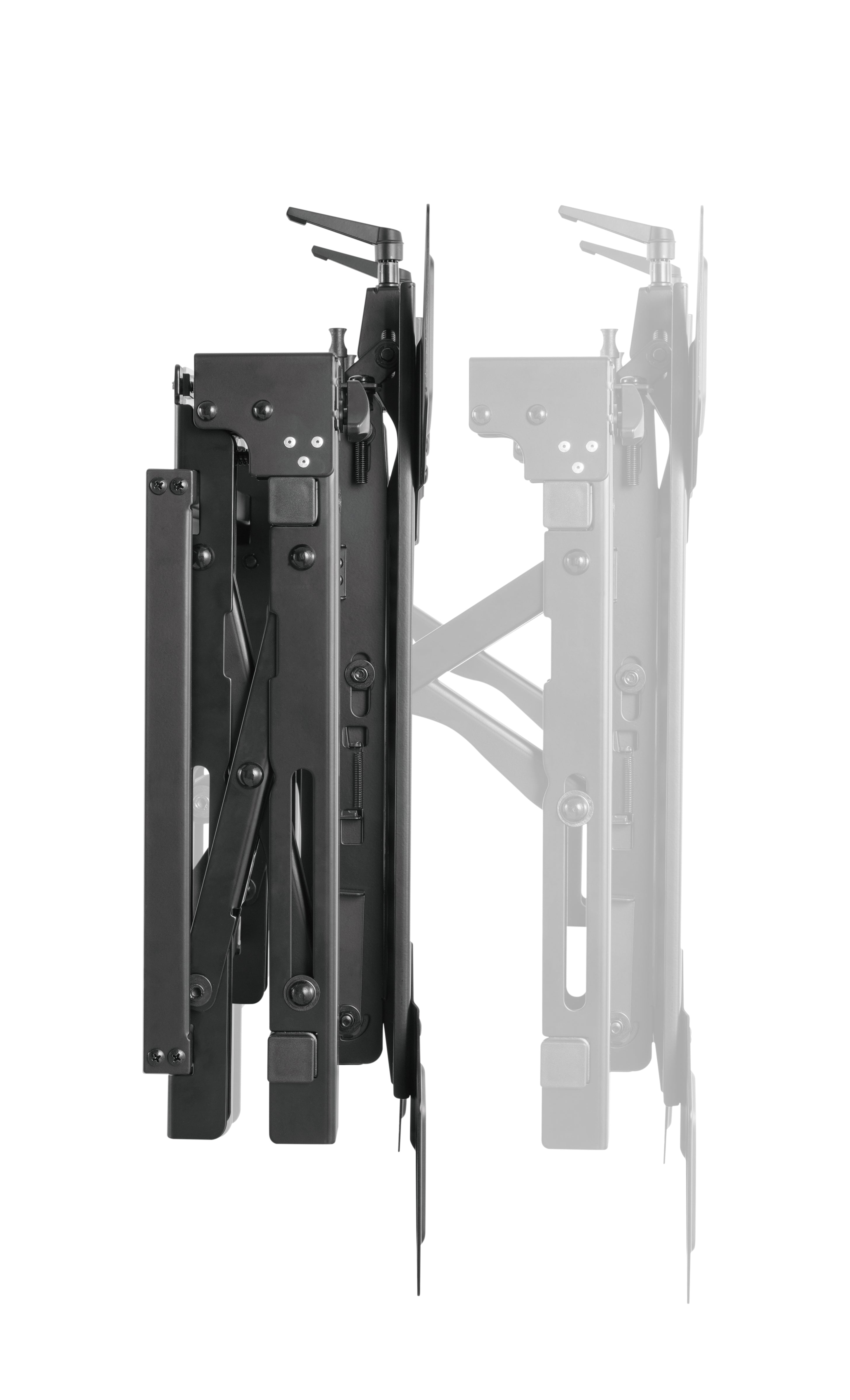

Mount-It! Pro's MI-20412 Pop-Out Video Wall Mount (Portrait) provides a professional video wall solution while offering universal display compatibility with load capacity of 70kg/154lbs, and a VESA 600x400 mounting pattern. This video wall mount allows unlimited display configurations and features an innovative pop-out function that provides quick and easy rear of screen access. Post-installation lateral shift allows screens to slide apart and back together to simplify installation and maintenance. It also features 6 points of vertical, tilt and depth adjustment for seamless display alignment and leveling. Kickstand provides 12° of tilt for easy cable management and maintenance. It is a perfect solution for public display, video wall, and menu board applications. An anti-theft design ensures security. (Padlock required)

  • Material: Steel
  • Surface Finish: Powder Coating
  • Color: Matte Black
  • Fit Screen Size: 45""-70""
  • VESA Compatible: 200x200, 200x400, 300x300, 400x400, 400x600mm
  • Weight Capacity (Per Screen): 70 kg
  • Screen Qty: 1
  • Strength Tested: 4 Times Approved

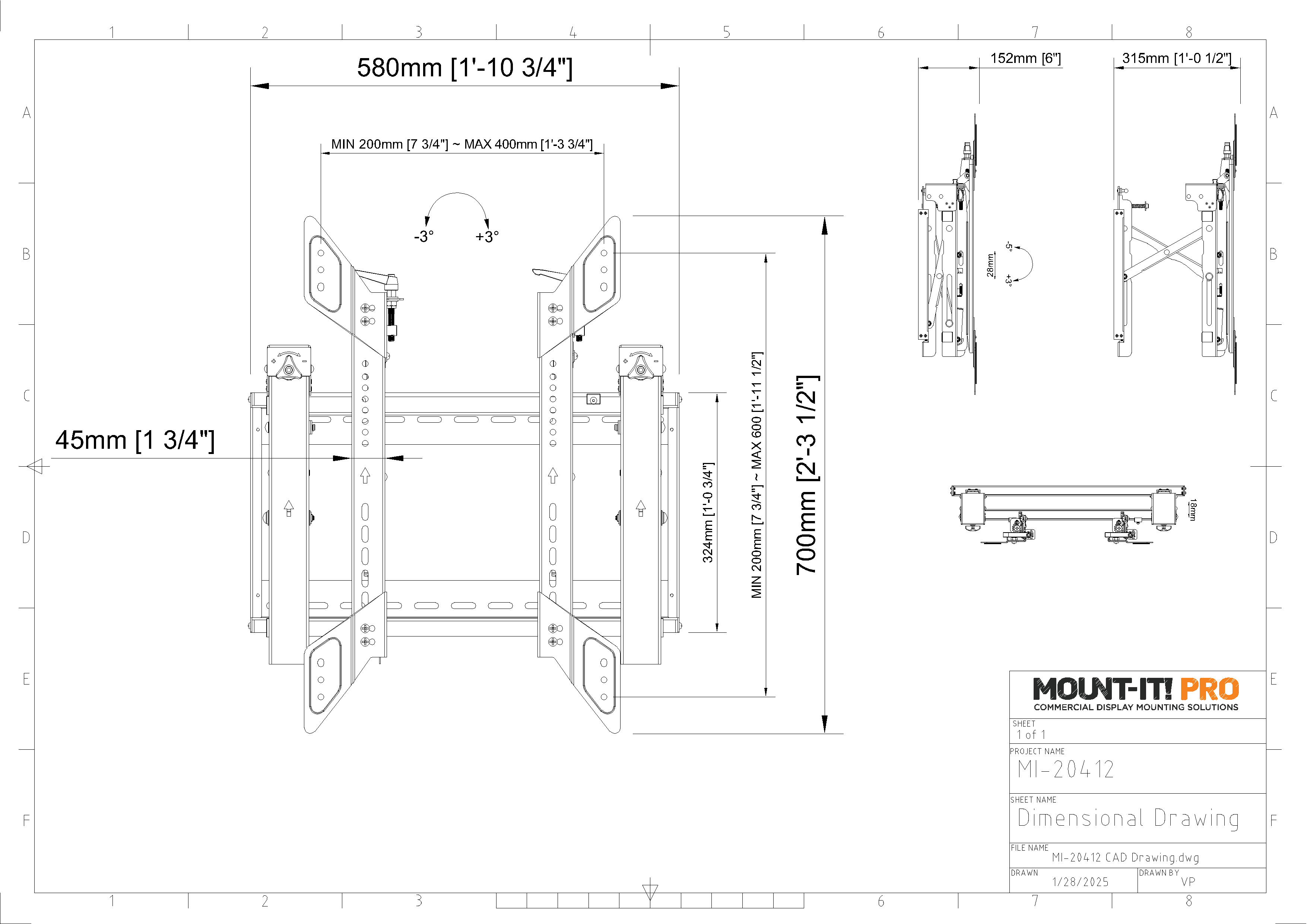

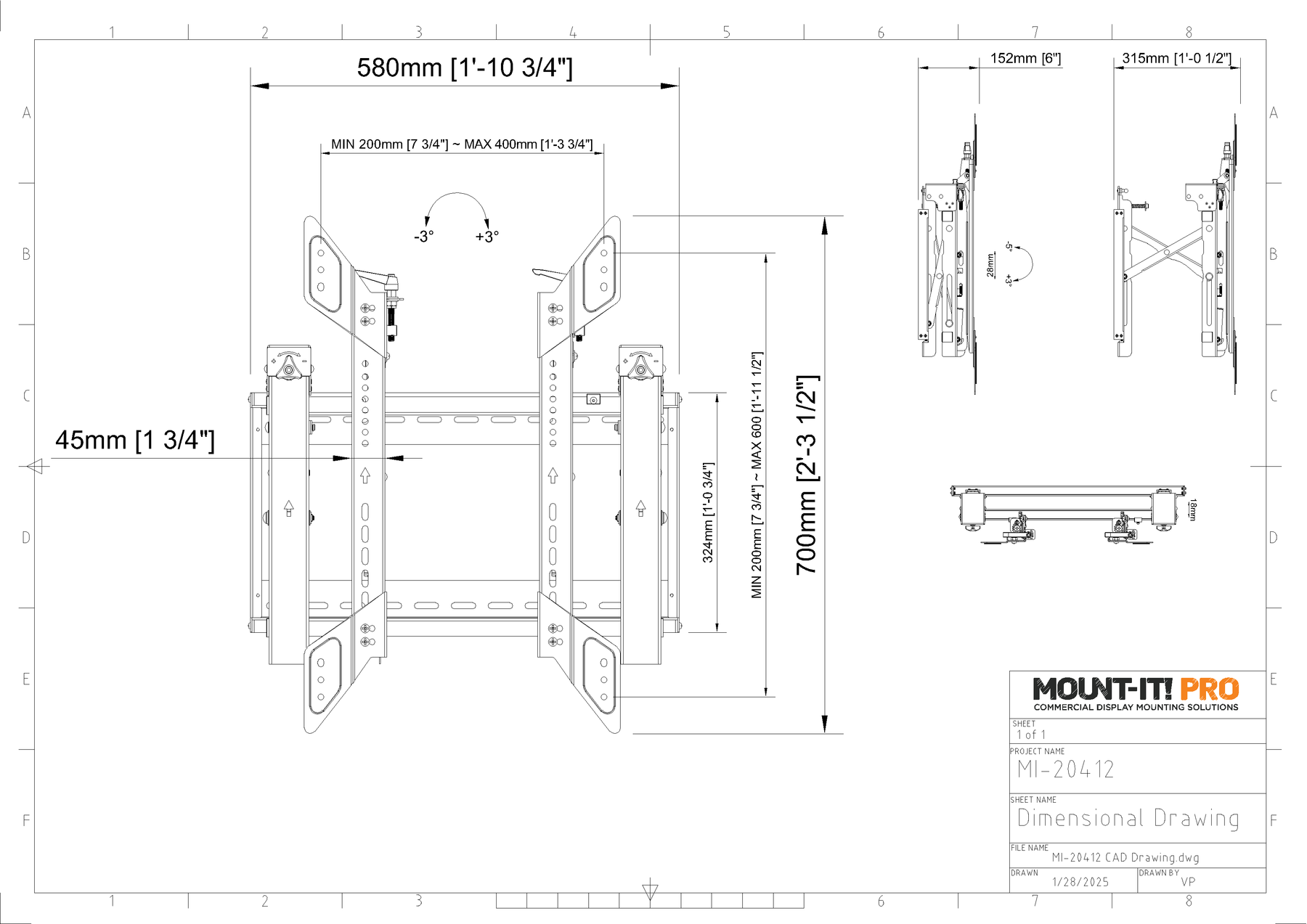

  • Profile: 5.98"- 12.4" (152mm~315mm)

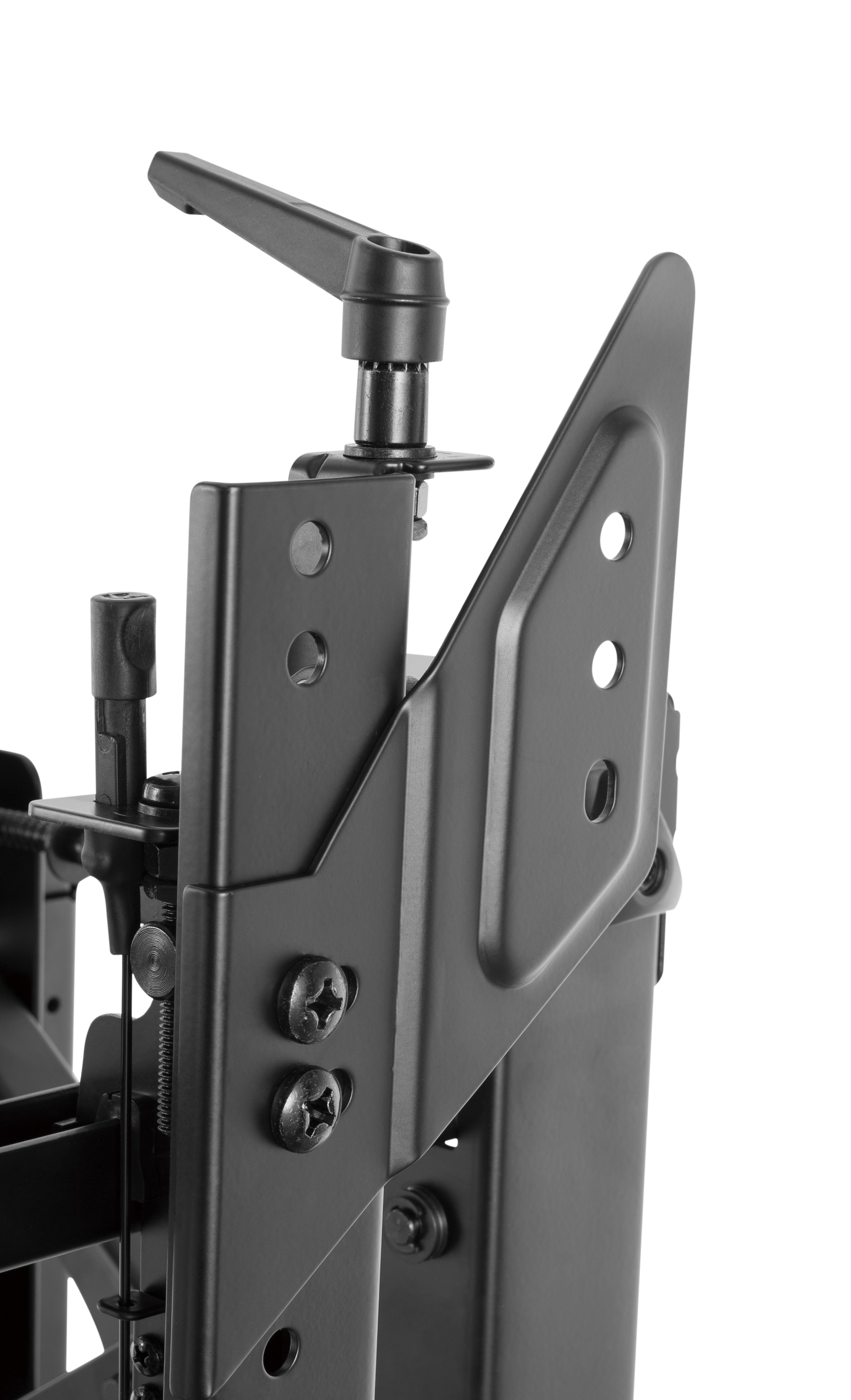

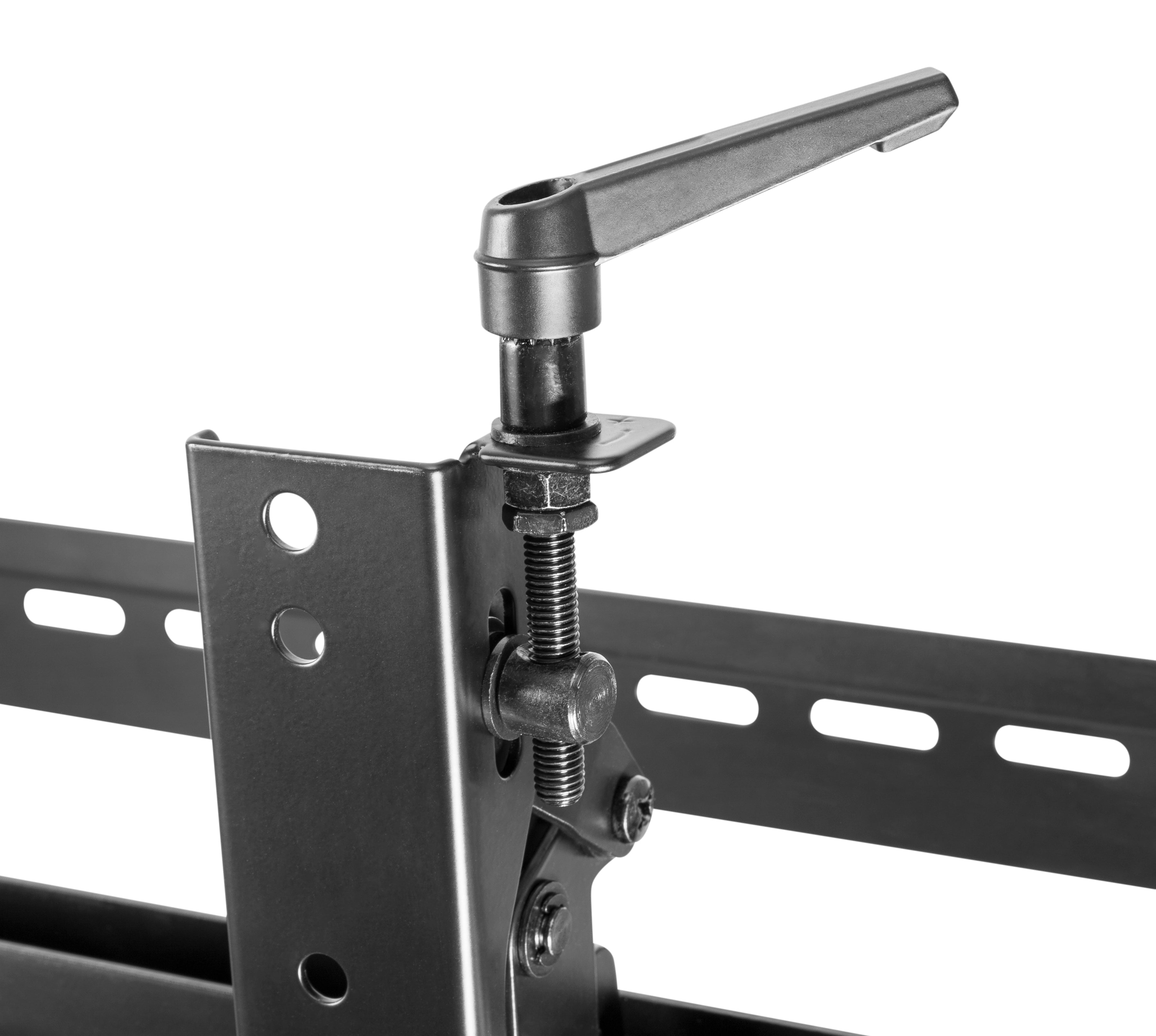

  • Fine Adjustment (Depth/Height): 18mm/28mm
  • Tilt Range: +3°~-5°
  • Screen Level: +3°~-3°
  • Installation: Solid Wall
